Land Rover Series 2.25L Body Panels

The Landy had rust in the usual places. Apart from the Chassis and the Firewall, the rest of the Landy is mostly an Aluminium alloy, which was an amazing choice back in the day, because that doesn't rust. All body panels that had to be replaced were in the steel sections. The chassis steel is over 3mm thick steel and even my bad welding can be done on that! The firewall steel panels are 1mm thick, so still nice and easy to weld.

A few handy diagrams

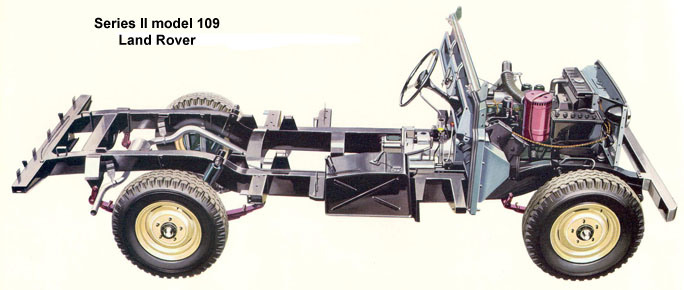

Chassis Diagram

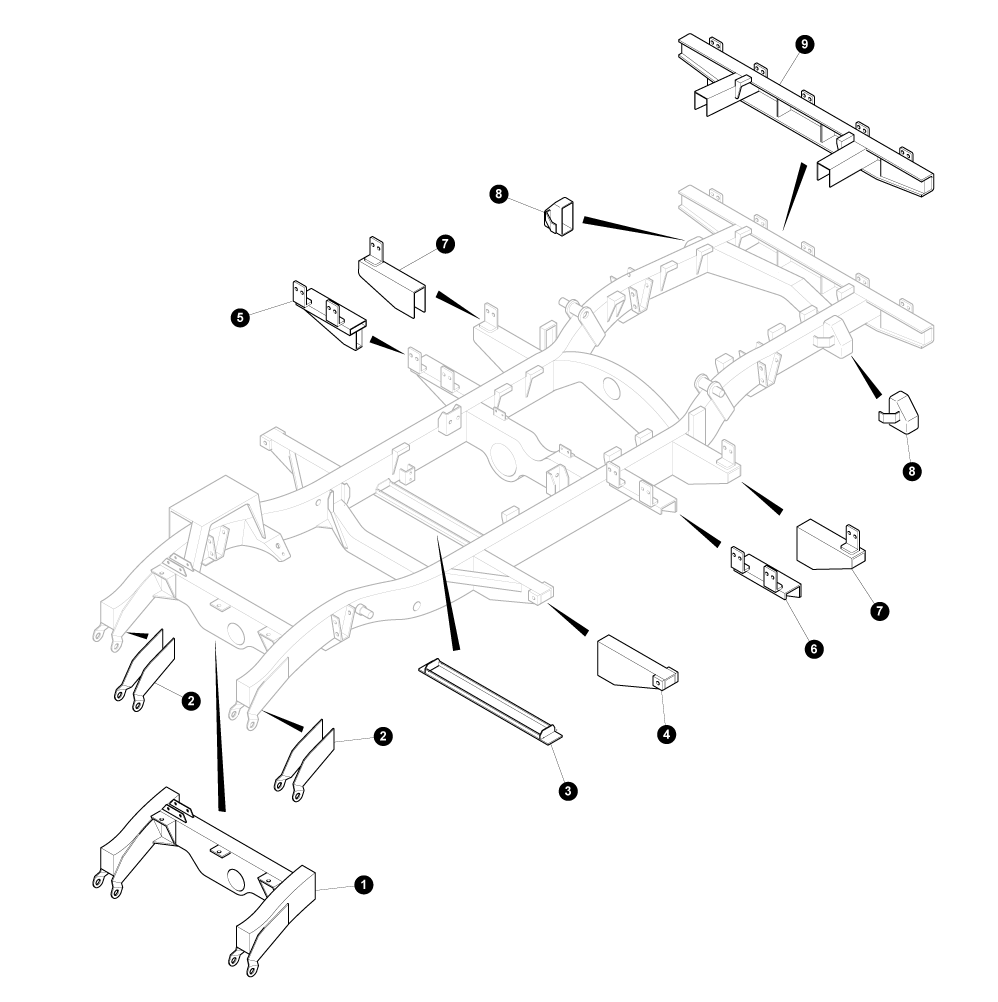

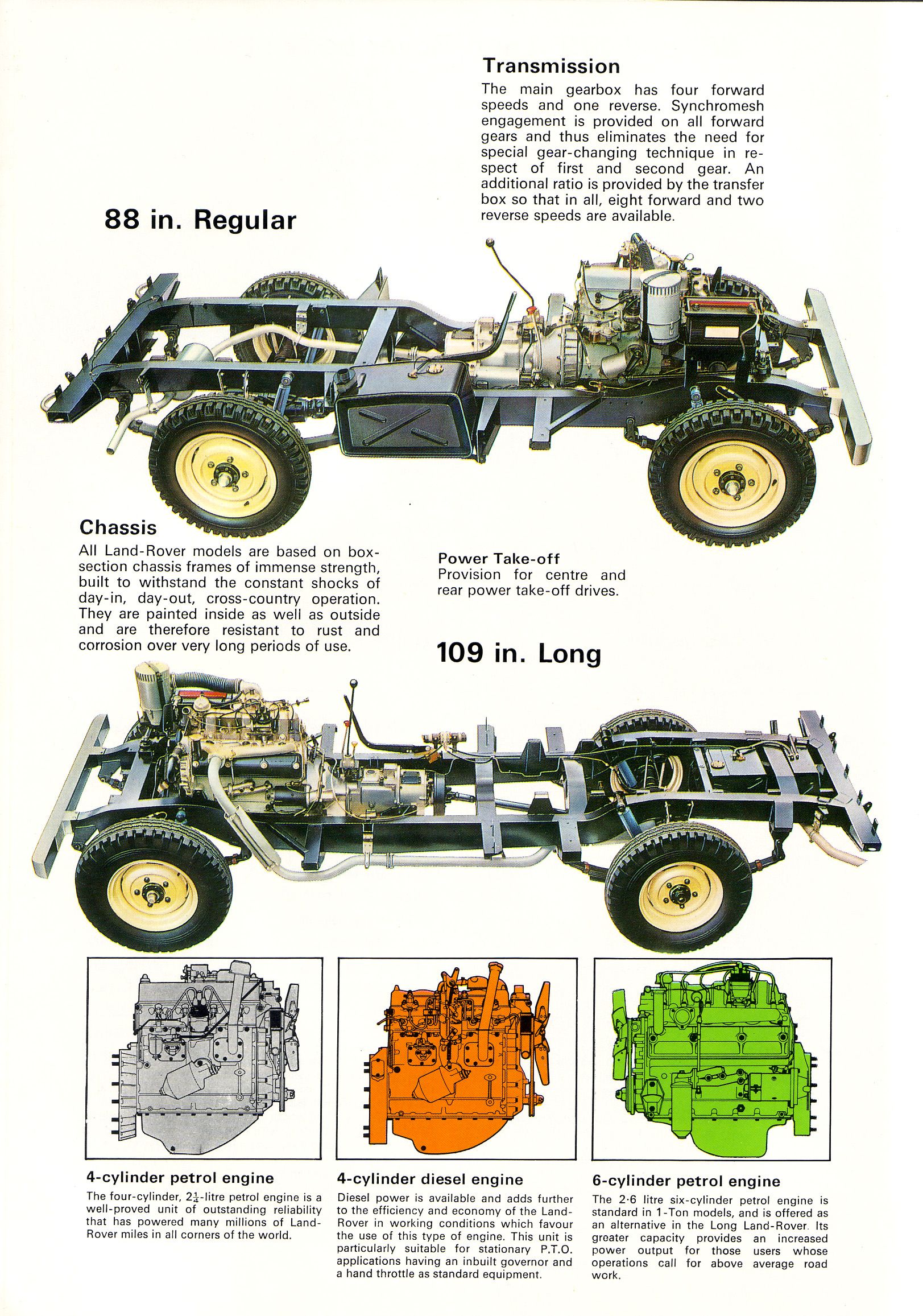

Chassis to Engine Diagram

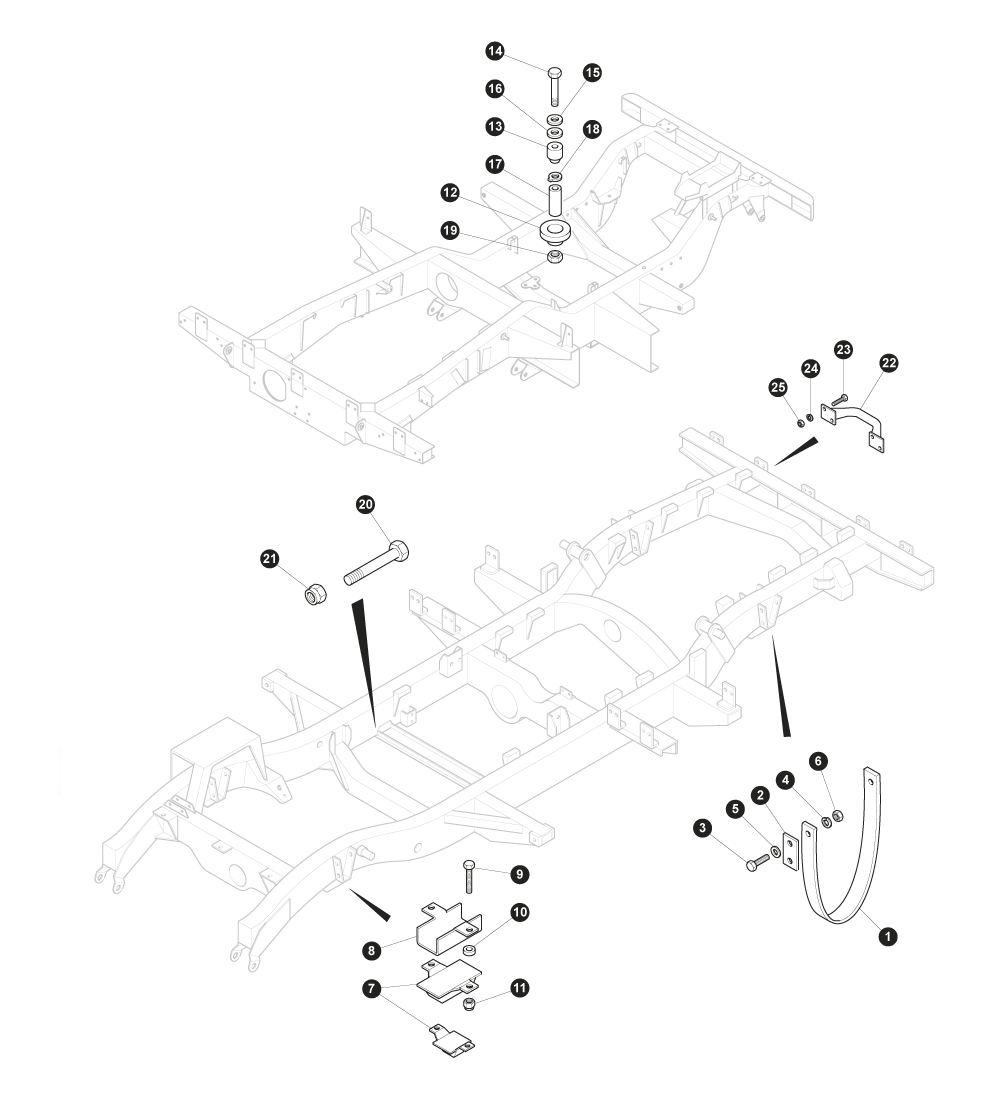

Chassis Diagram

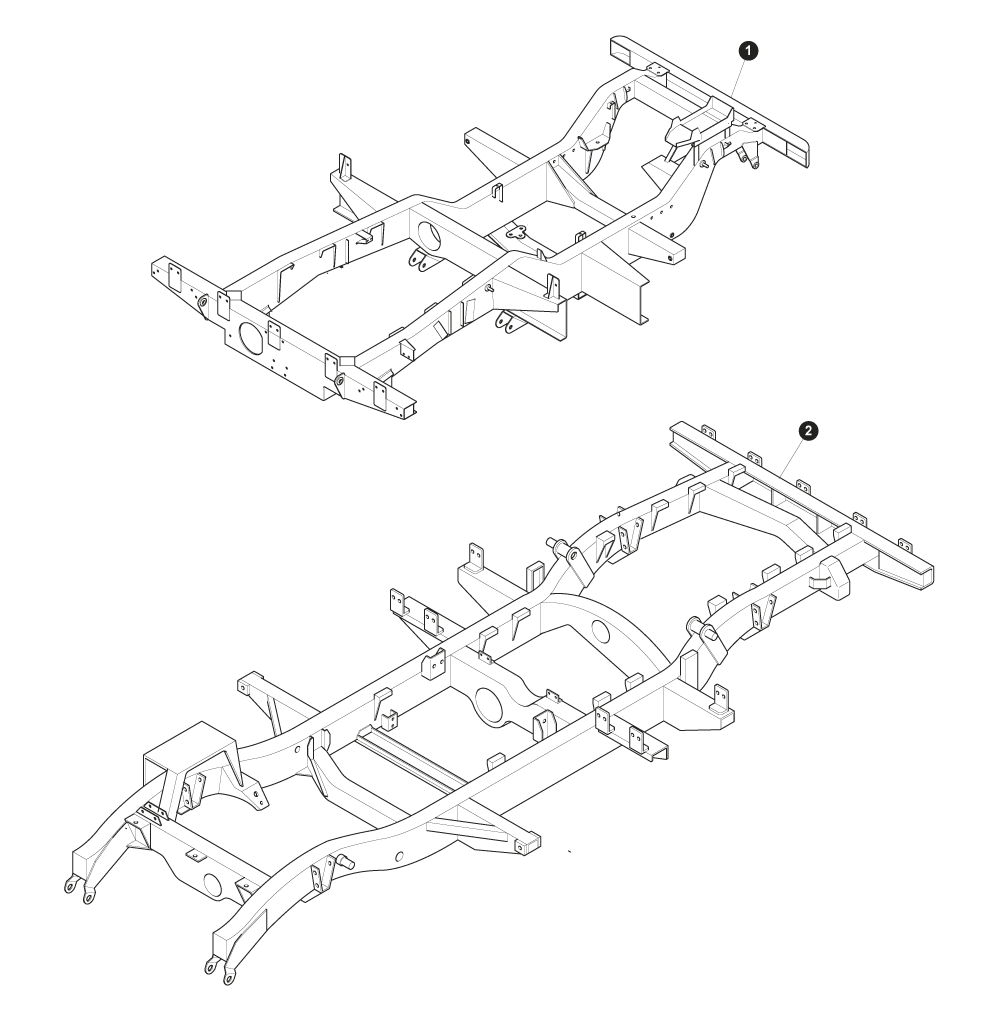

Another Chassis Diagram
...and Another Chassis Diagram
Lubrication Guide

Body Panels

The following panels were purchased for this Landy and Paddock Spares in the UK had all of them. Shhh Secret... They don't charge GST and if you keep it under $1000, it is much cheaper than other places. Shhhhhh
